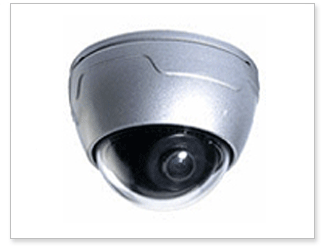

| GVS-560CVP |
 |
SONY 1/3" Super HAD CCD
|
|
4~9mm V/F DC AUTO IRIS LENS
|
|
410K(540TV LINES)
|
|
0.3 LUX (F1.4 / 50IRE)
|
|
 |
|
 |
|
| |
| MODEL |
GVS-560CVP |
| Image Sensor |
Sony 1/3" Super HAD CCD |
| Total/Effective Pixels |
410,000 / 380,000 (NTSC), 470,000 / 440,000 (PAL) |
| Resolution |
540 TV LINES |
| Lens |
4~9mm V/F DC AUTO IRIS LENS |
| Scanning System |
2:1 Interlace |
| Min. Illumination |
0.3Lux(F1.4/50IRE) |
| Video Output |
1.0V p-p (75ohm, composite) |
| Electronic Shutter Speed |
AUTO 1/60 ~ 1/100,000 (NTSC). 1/50 ~1/100,000(PAL) |
| Power Consumption |
DC 12V 140mA |
| Power Supply |
DC 12V / 500mA |
| Operation Humidity |
0% RH ~ 85% RH |
| Operation Temperature |
-10℃ ~ 50℃ (-14℉ ~ -122℉)s |
| Dimension / Weight |
145mm(W) x 103mm(H) / 1.2kg |
|
|
| |
|
|
