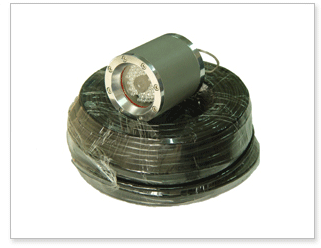

Water EYE 3S
Water Eye-3S
Depth-maximum water pressure :30m depth
1/3" Super HAD SONY CCD
Super White LED 48 pcs
Aluminum & Stainless steel (STS316L)
6mm Lens
100% custom made Specifications items
Cable + Camera purchased possibility separately
MODEL
Water Eye-3S
Image Sensor
Sony 1/3" Super HAD CCD
Resolution
560 TV Lines
Self-Illumination
Built-in LED 48 pcs
TV SYSTEM
NTSC / PAL
Water Pressure
10kg / ㎠
Lens
Fixed 6.0mm Lens (FOV 53)
Cable Material
Urethane coating underwater coaxial cable, basically 50m
(option : 100m , 200m(
Operation Temperature
-30℃ ~ 60℃
Case
aluminum & Stainless Steel (STS 316L)
Min. Illumination
0.002 LUX
Visible Range
Different according
Lamp Lfietime
Max 50.000 Hour
Power Consumption
3W
Power Supply
DC 12V / 1A
Dimension
￠85 x L115mm (Include Vacuum Nozzle)
Weight
1.3 kg
Remark
Design and specifcation of camera could changed according
to use, water depth, density
