 HOME  Underwater Camera Water EYE 4S |
 |
| |
 |

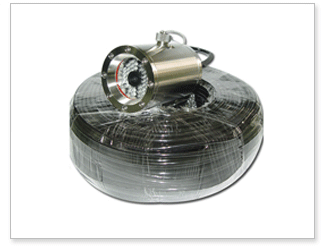

| Water Eye-4S |
 |
Depth-maximum water pressure : - 200m desing |
|
1/3" Super HAD SONY CCD
|
|
Validity pixel : 410,000K
|
|
Super White LED 51 pcs
|
|
All Body Stainless Steel
|
|
6mm Lens
|
|
Complete vacuum, waterproof,
20 designs Pressure
|
|
100% custom made Specifications items
|
|
Cable + Camera purchased possibility separately
|
|
 |
|
 |
|
| |
| MODEL |
Water Eye-4S |
| Image Sensor |
Sony 1/3" Super HAD CCD |
| Resolution |
560 TV Lines |
| Self-Illumination |
Built-in LED 48 pcs |
| TV SYSTEM |
NTSC / PAL |
| Water Pressure |
20kg / ㎠ |
| Lens |
Fixed 6.0mm Lens (FOV 53) |
| Cable Material |
Urethane coating underwater coaxial cable, basically 50m
(option : 100m , 200m( |
| Operation Temperature |
-30℃ ~ 60℃ |
| Case |
Stainless Steel (STS 316L) |
| Min. Illumination |
0.002 LUX |
| Visible Range |
Different according |
| Lamp Lfietime |
Max 50.000 Hour |
| Power Consumption |
3W |
| Power Supply |
DC 24V / 1A |
| Dimension |
￠85 x L115mm (Include Vacuum Nozzle) |
| Weight |
3.6 kg |
| Remark |
Design and specifcation of camera could changed according
to use, water depth, density |
|
|
| |
|
|
